Ultra Light Weight. Low Series Resistance. Easy & quick to install. Higher Open Circuit Voltage. Low System Installation cost. Easily mounted with number of options . Maintain Module Integrity &Power maintenance. Superior Low Light & Low sun Angle Performance.
5 Years Material & Workmanship Warranty & 15 Years Power Output Warranty.
Product Features:
Mechanical Characteristrics:
Solar cells per Module / Arrangement | 144 (12 x 6 || 12 x 6) |
Cell Dimensions | 166 x 83mm |
Cell Type | Mono-PERC |

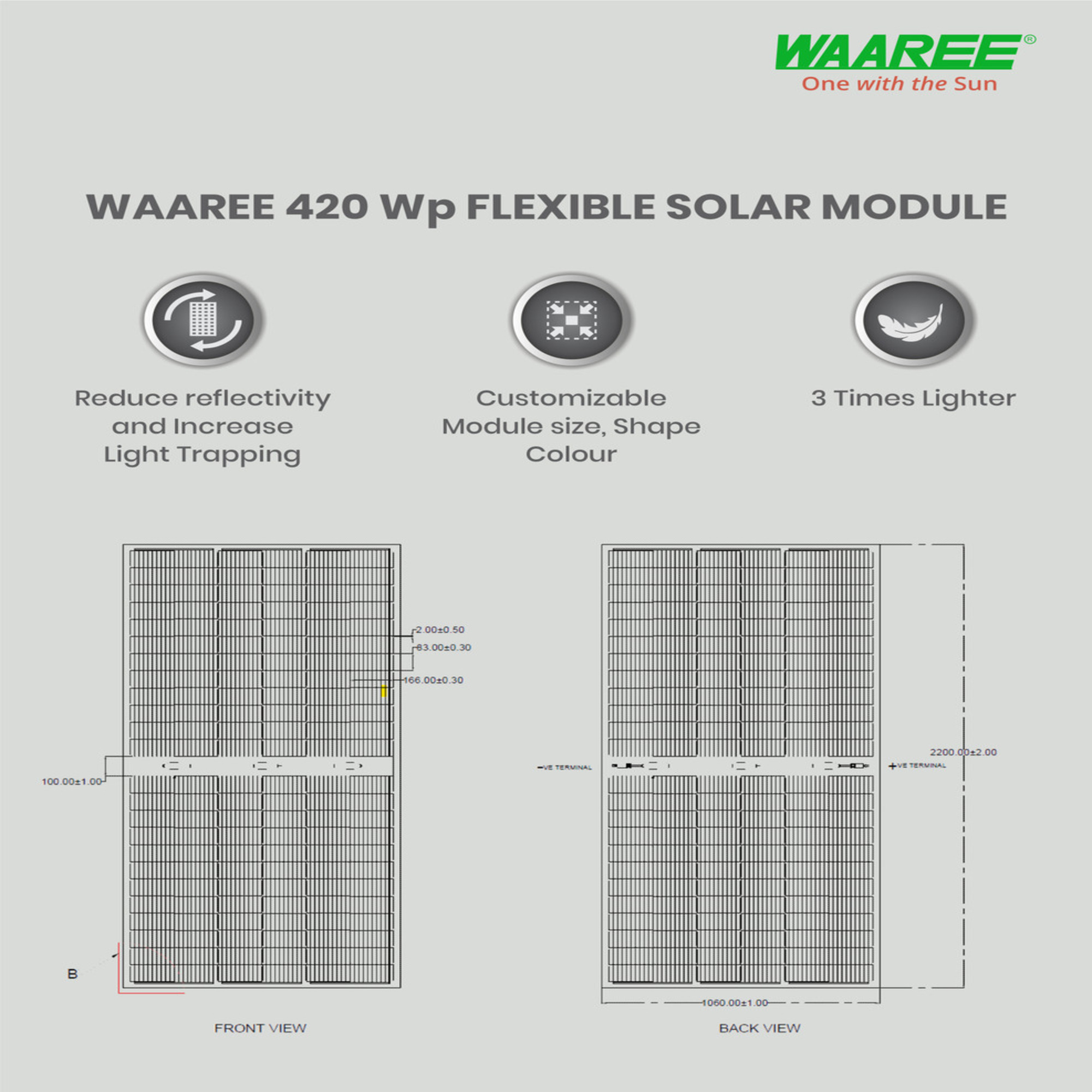

Module Dimensions (LxWxH) | 2200 x 1060 x 22mm |
Weight | 10.5 ± 0.5 Kg |
Junction Box | IP67 with 3 bypass diode |
Connector Type | MC4 Compatible |
Superstrate type (e.g-strengthened glass,tempered glass etc) | ETFE Polymer |
