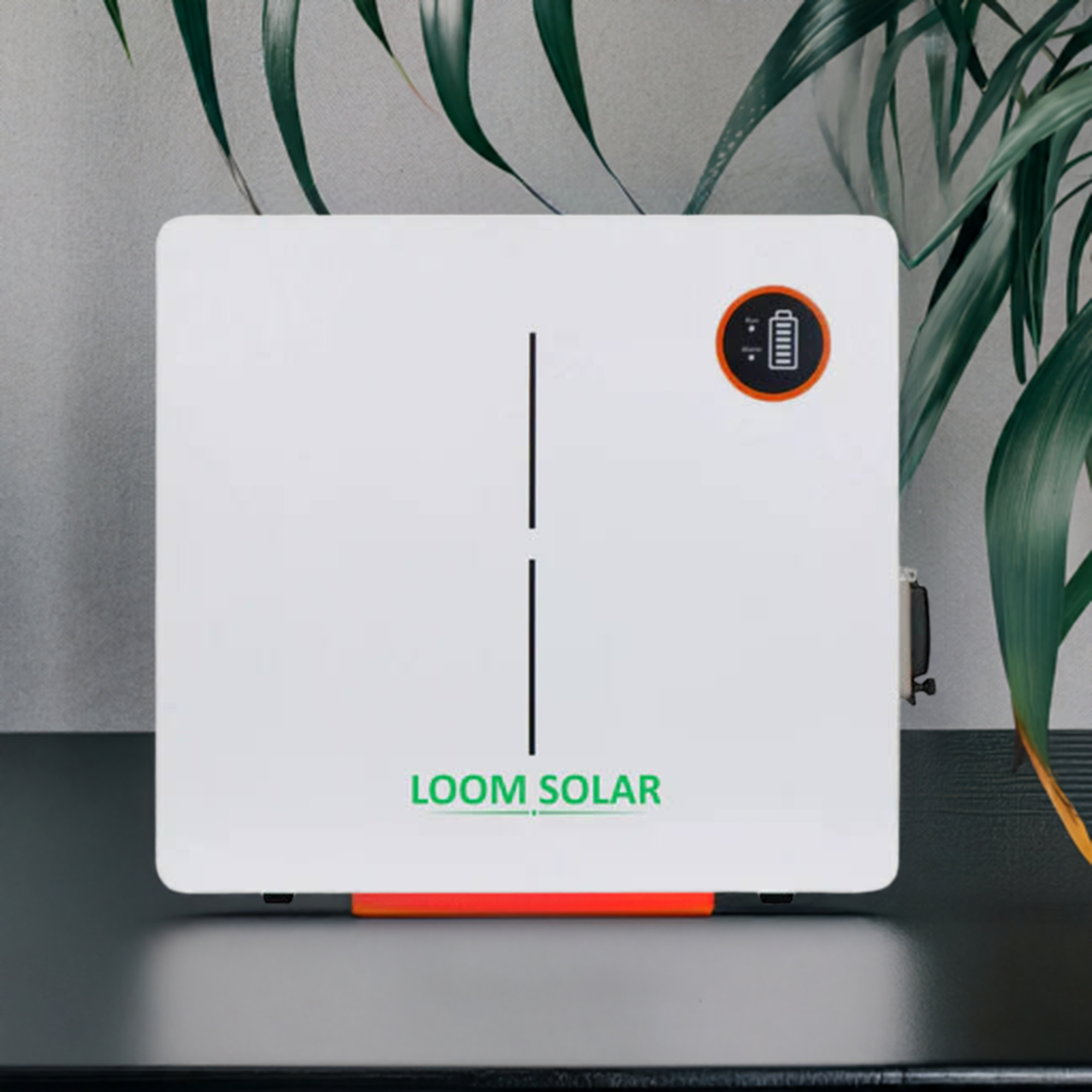

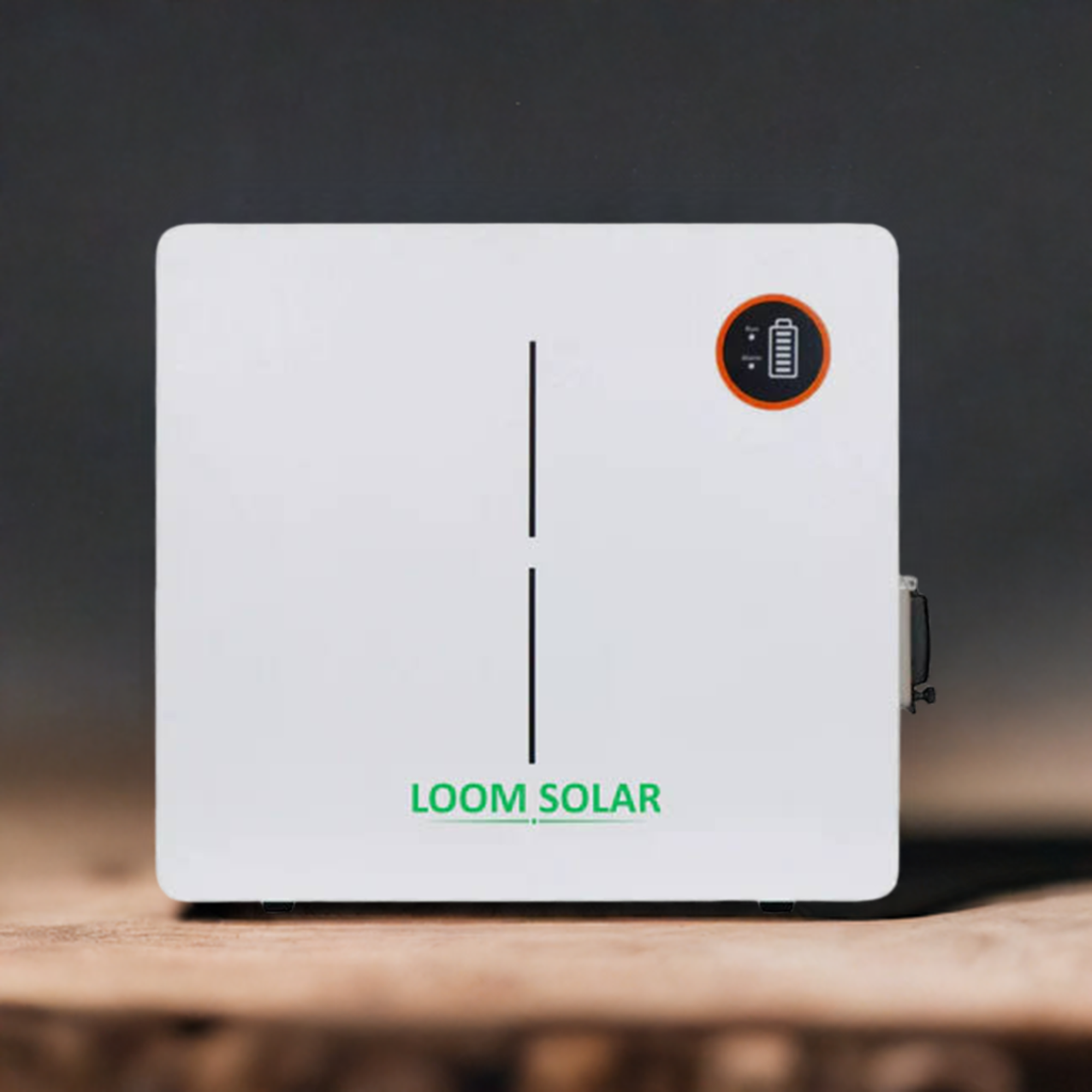

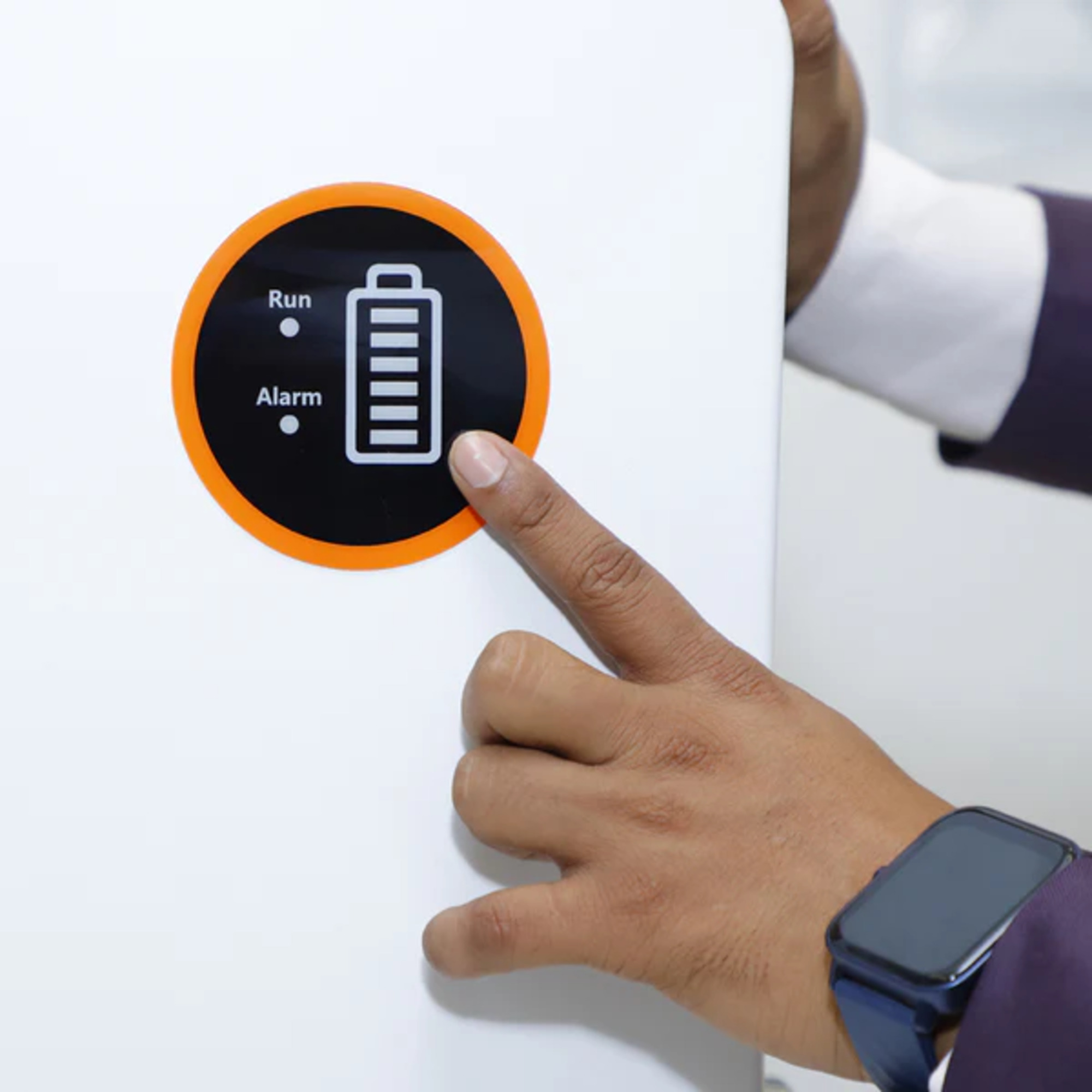

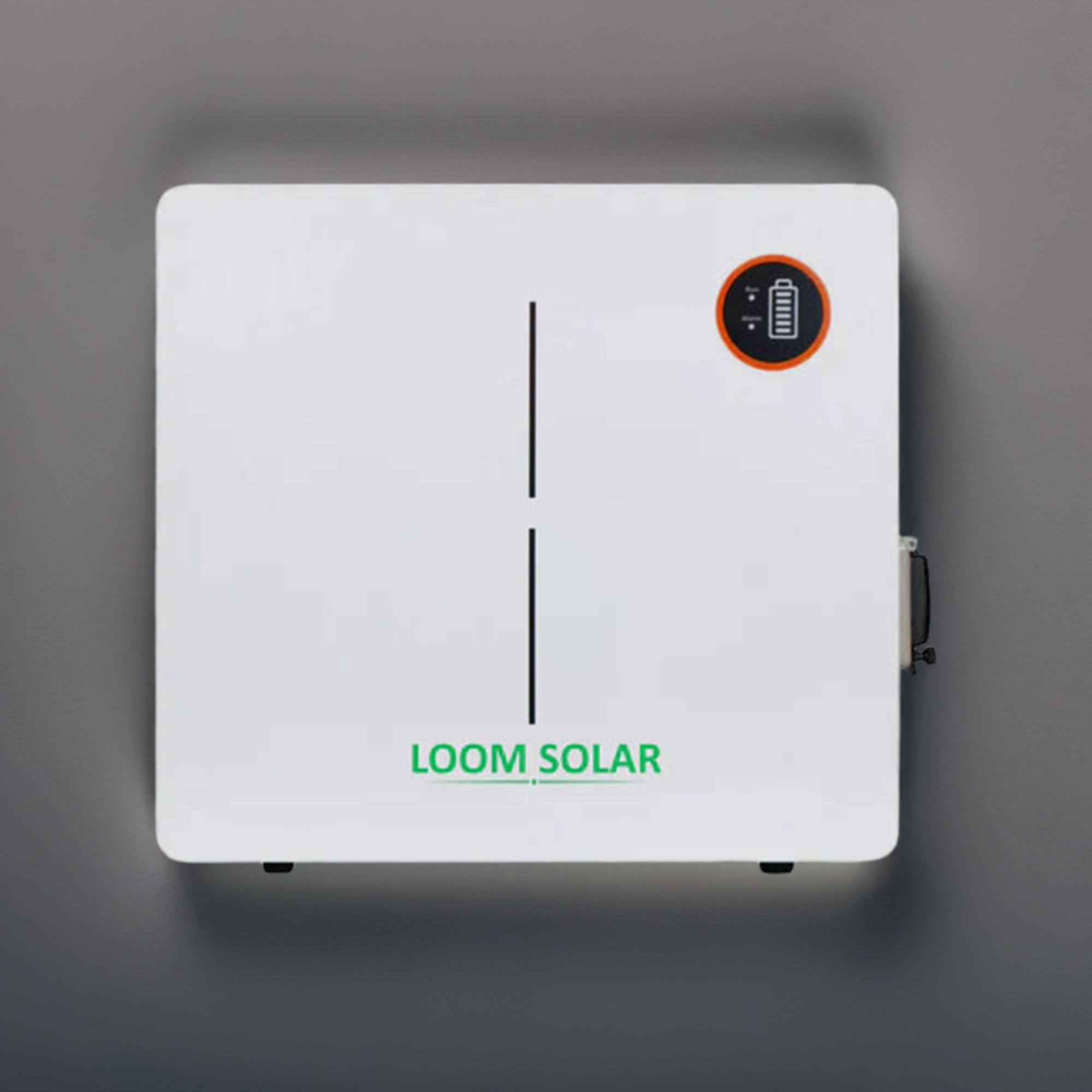

The company has been consistently adding new innovations in LifePo4 Batteries used in Homes and Business. CAML10051IP is an IP 56-rated battery which makes it water resistant, dustproof and fireproof. It has a Front display. The Lithium cells used in this battery are also used in Electrical vehicles such as cars, motorbikes and Mobile batteries. Lithium battery is the latest technology product in the battery storage market, It has many advantages including
- Faster Charging - Battery gets charged 100% in just 2-3 hours
- Longer life - Compared to Lead acid and SMF, Lithium battery has a 6,000 cycle life which translates into 10-15 years of usable life.
- Light Weight - The weight of a lithium battery is 1/4th of Other comparable batteries such as SMF, and lead acid batteries.
- Maintenance-free, no memory effect
- Battery bank Expandable in parallel
- Safest battery with modular design
- Wide operating temperature range
- Quick and Easy Installation
Applications
| Large Homes | Restaurants | Hotels |
| Educational Institutions | Healthcare Institutions | Banking Sectors |
| Petrol Pumps | Offices | Sabzi Mandi |
| Shops | Poultry Farm | Caravan |
Technical Specifications
Manufacturer | Loom Solar |
Rated Capacity | 5120Wh/51.2V/100Ah |
Voltage | 51.2V |
Charging Voltage | 56.16V |
Max. Output Power | 5.0kW |
Battery Type | LiFePO4 |

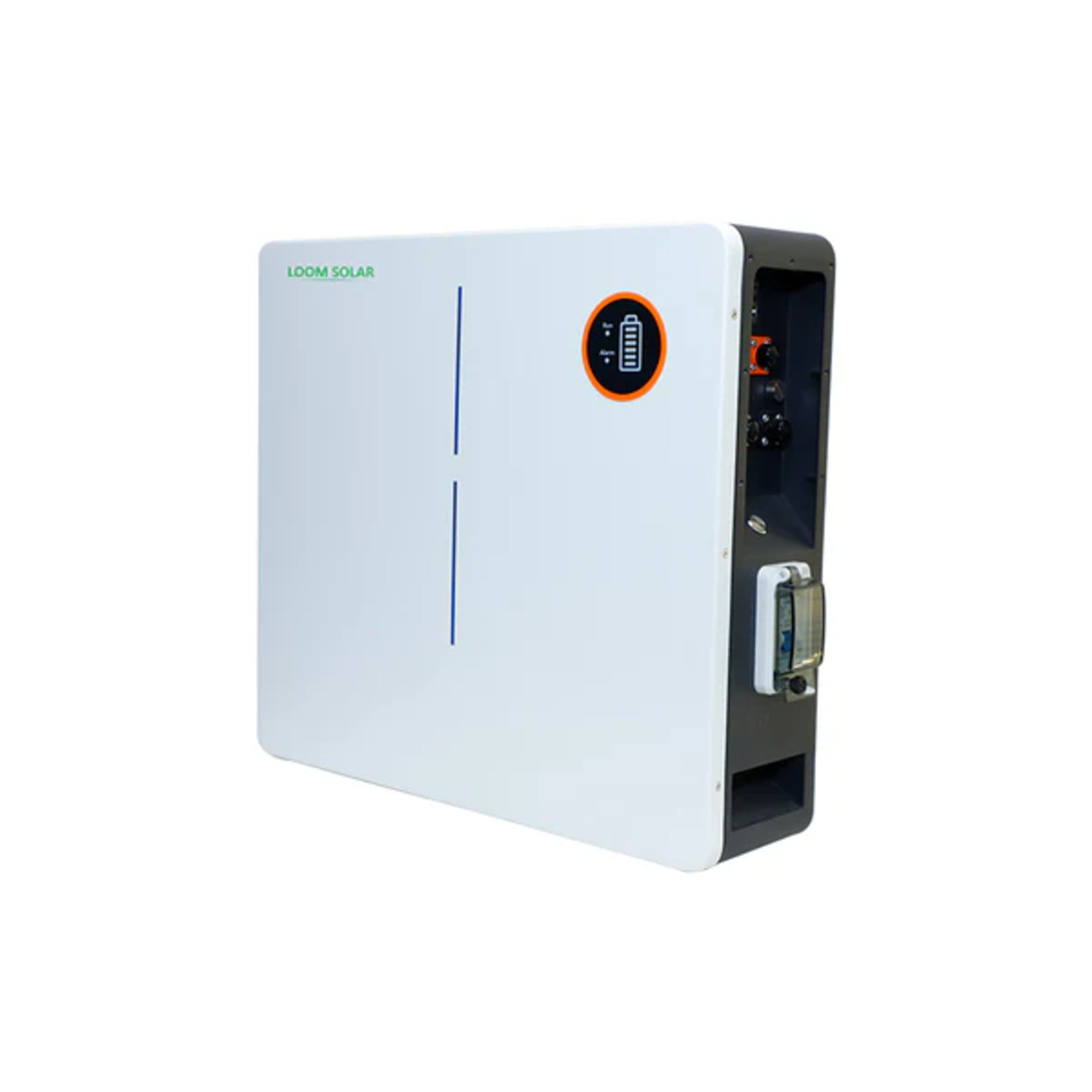

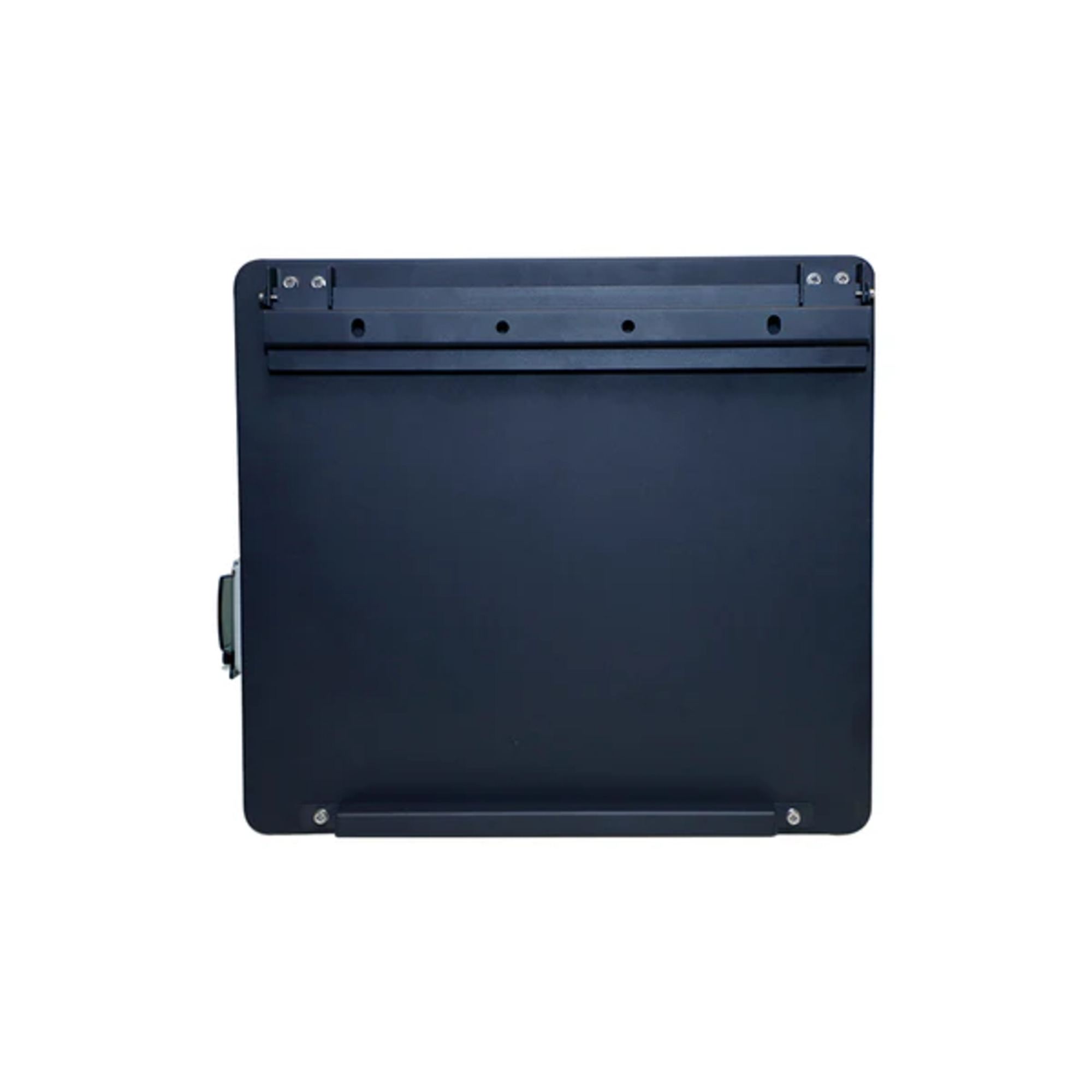

System Type | Wall-mounted |
Model Number | LV-BAT-W5.12Ac |

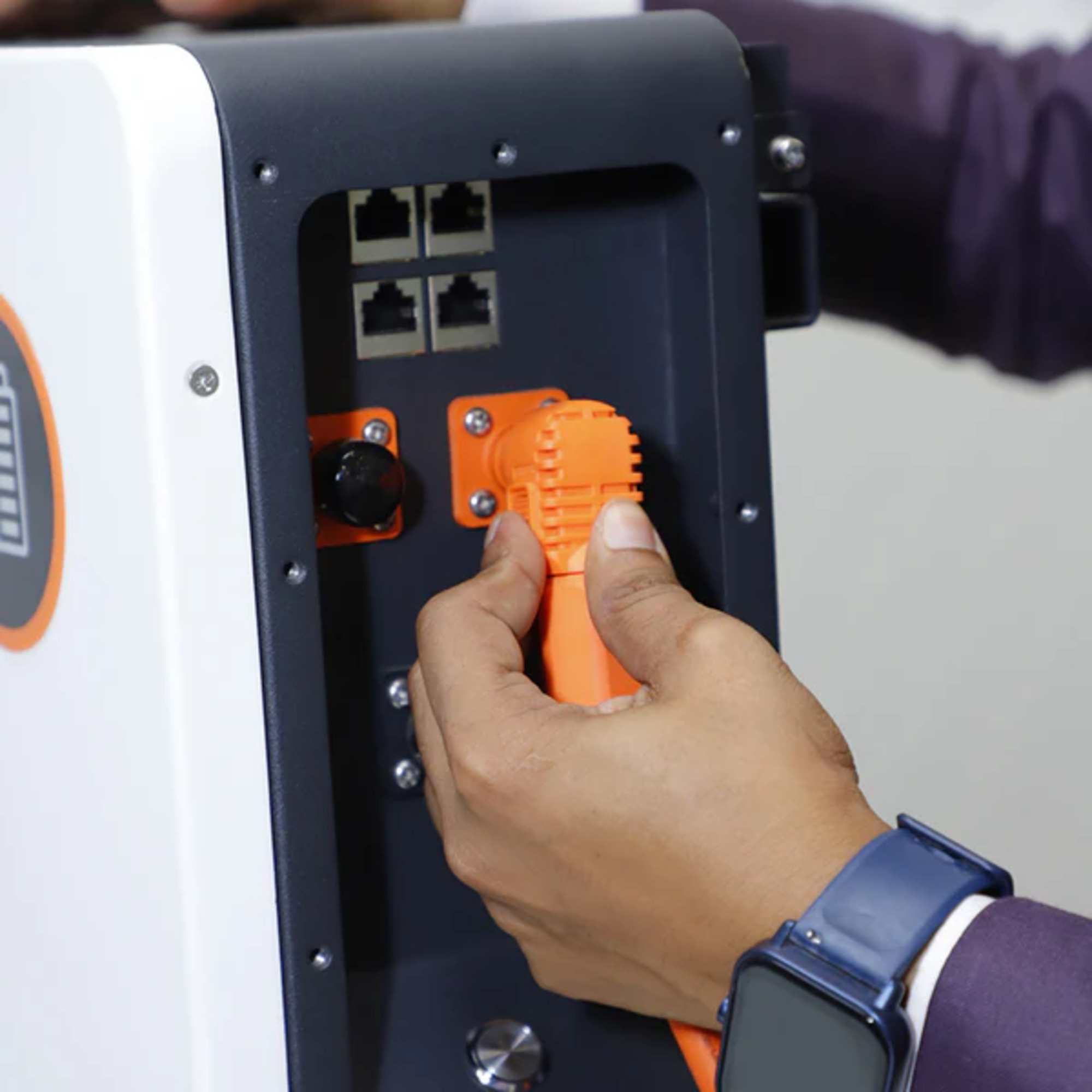

Communication Port | CAN / RS485 for inverter communication |
Protection Class | IP65 |
Grid connection | Off-grid, Hybrid grid |
Product name | CAML Wall Mounted Lithium Ion Battery |
Battery cell | Grade-A Battery Cell |
Cycle life | 6000 Times |
Warranty | 5 Years |
Protection | Smart BMS Protection |
Efficiency | 98% |
Certifications
UN38.3, RoHS, MSDS, CE, PSE, CB, CE
Service
Free replacement parts service - Get free replacement parts service and online technical support for 1 year after purchase.
Caution📢
- Do not throw batteries into the fire.
- Do not short-circuit.
- Do not heat or disassemble batteries.
- Never keep batteries near sources or in high temperatures.
- Read the application's instruction manual carefully before use.
- Charging the battery with 50A constant until 56.16V at room temperature 20 degrees C+/-5 degrees C.
Warning⚠️
DANGER! Chemical Hazard & Shock Hazard
- Do not disassemble or repair the battery by yourself.
- Do not drop, deform, impact, cut or spear the battery with a sharp object.
- Do not apply strong pressure to the batteries or handle them roughly.
- Keep batteries away from direct sunlight, high temperature and high humidity.
- Please keep the battery away from liquid.
- Keep batteries out of reach of children.
- If you notice signs that the battery has a problem, such as overheating, odour, leaks, bulging, or change in colour/shape, shut off the device and move it away from anything that can catch on fire.
- Avoid charging or storing batteries at high temperatures. High temperatures might ignite the battery and cause a fire.
Danger❗
- Do not parallel connect with different batteries.
- Do not connect the battery with AC power directly.
- Do not connect the battery with PV wiring directly.
- Do not connect batteries in series.
- Do not connect the battery to a faulty or unqualified inverter or charger.
- Do not place the battery near an open flame or flammable material.
- Do not place the battery in a children or pet-touchable area
- Do not short-circuit the external connection.
- Do not place the battery under direct sunlight.
Warning⚠️
- Recharge the battery in every six months.
- Recharge the battery within 10 days after the battery is fully discharged.
- Please engage the correct multiple batteries based on the inverter's maximum charge and discharge current.
- Make sure the grid power is cut off and battery is powered off before installation.
- Make sure the earthing cable is connected correctly before operation.
- Power off the battery and disconnect power connections before maintenance
Shipping
Weight | 41+1kg |
Dimensions | 445x455x133.5 mm |
Download
CAML10051-WM Datasheet
Power Anything...
 |  | | |
| Freezer (400W) | Slow Cooker (150W) | Microwave (1000W) | Refrigerator (100W) |
| 12.5 hrs* | 33.3 hrs* | 5 hrs* | 50 hrs. |
